ALADINO MANUAL & ELECTRIC print

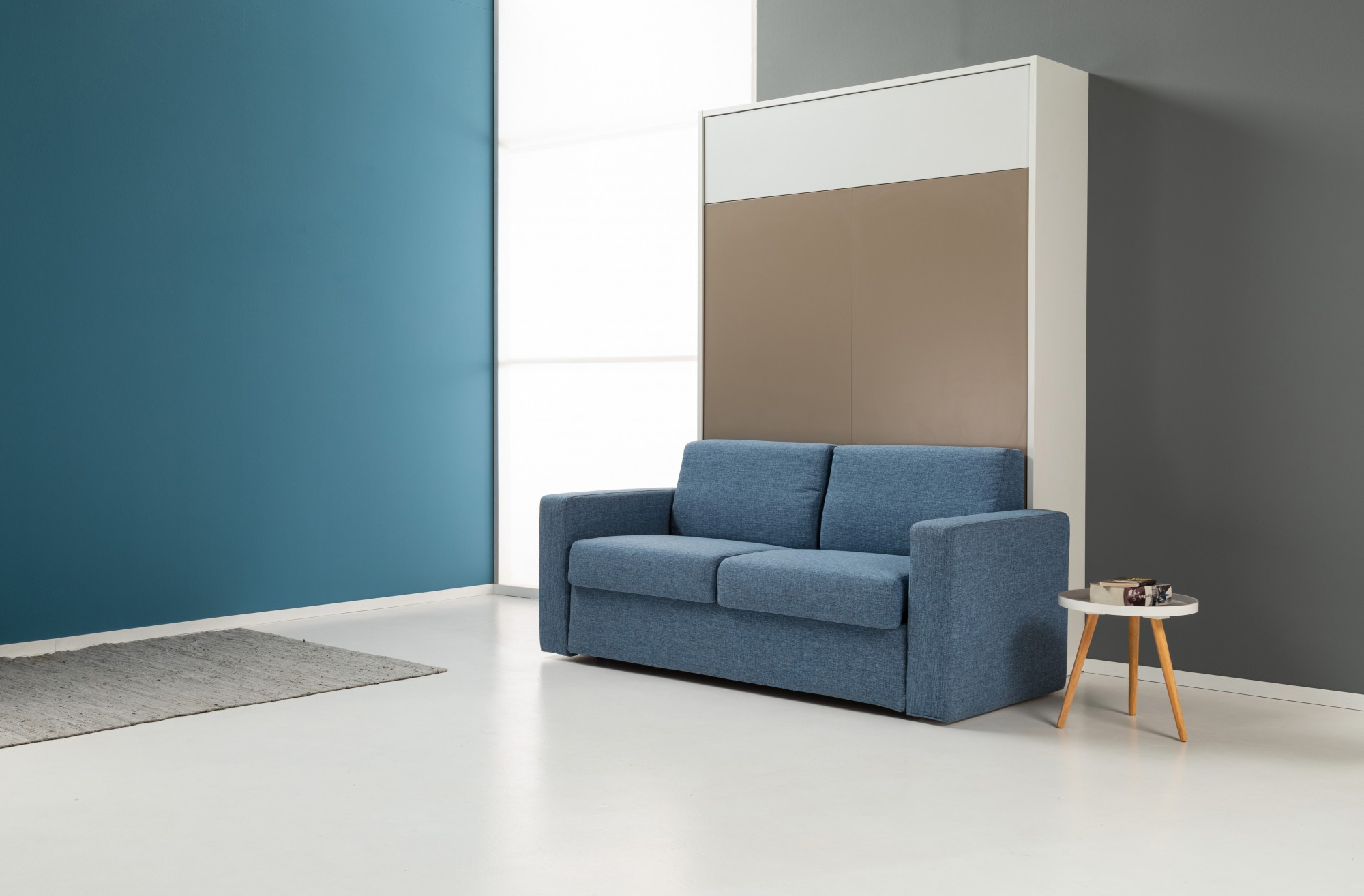

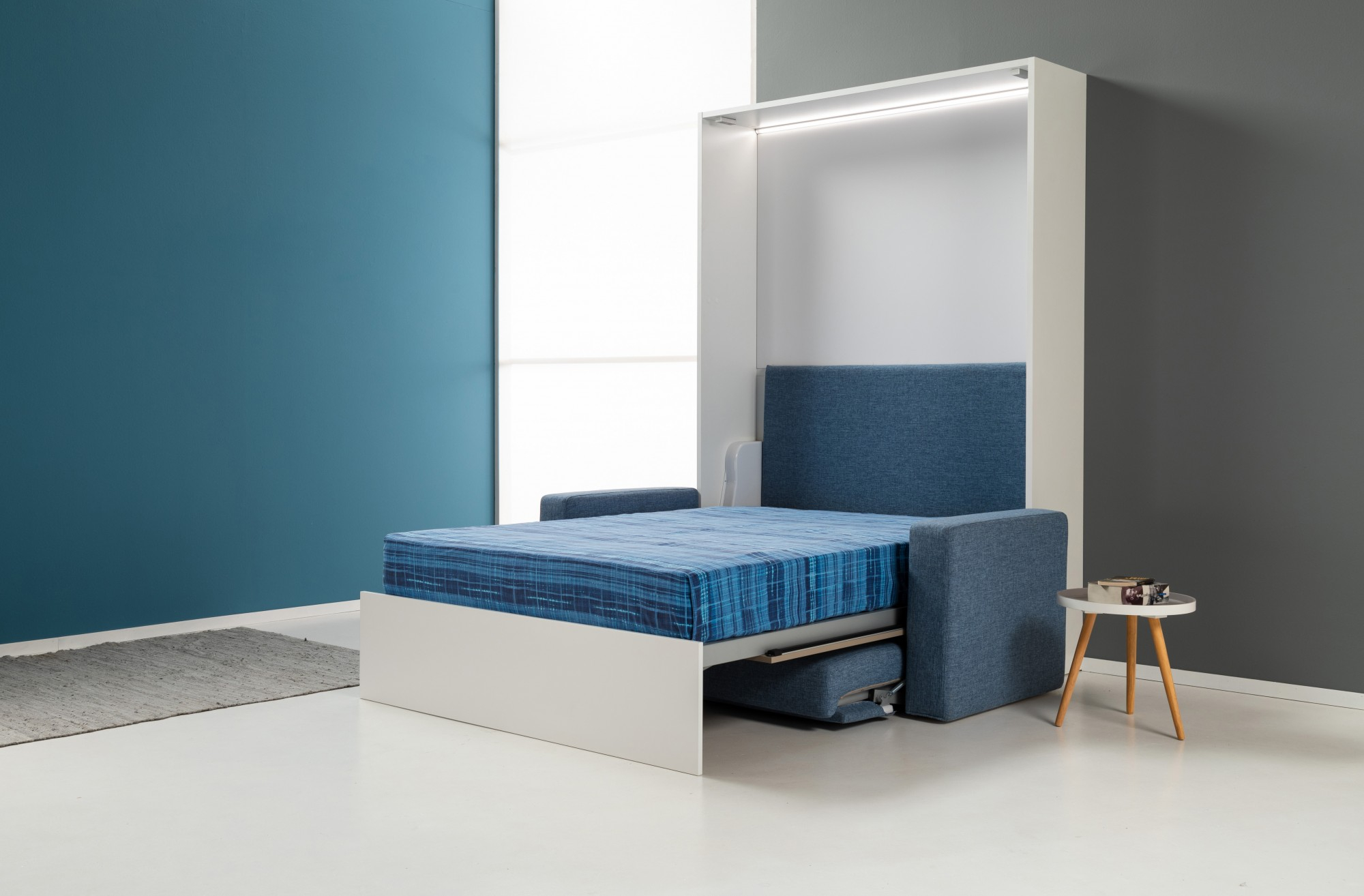

A hide-away bed solution Aladino can be manual or motorized.

MOD. “ALADINO MANUAL” AND “ALADINO ELEKTRA”  VERTICAL HIDE-AWAY BED  (Patent Pending model)  MANUAL AND ELECTRICAL FOR WARDROBE WITH COLLAPSIBLE DIVIDED DOOR THAT BECOMES A FOOTBOARD PANEL.

The system includes the bedframe made of straight welded metal tube 60×30 mm and 68×8 mm beech plywood slats that are inserted into the metal frame by means of special rubber slat holders.

It can be supplied with an optional manual pull-down mechanism featuring special Stabilus Gmbh/Germany high performance gas springs or electrical actuators. Pull-down mechanism allows for the automatic footboard opening in sync with the lowering of the bedframe.

Epoxy powder coating in aluminum grey. For mattress 85/90/120/140/160/180 x 200 x h. 20 cm (cabinet not included):

Mechanism can come in 3 different versions:

• Vertical single bed frame 87×200 – 92×200 – 102×200 – 122×200 cm
• Horizontal single bed frame 81×195 cm
• Vertical double size frame 142×200 – 162×200 – 182×200 cm

The mechanism can also accommodate a headboard and can double with table or sofa mechanism in front.

• Front foldable sofa is possible for sizes: 122 – 142 – 162 – 182 cm
• Front foldable table is possible for sizes: 87 – 92 – 102 – 122 – 142 – 162 – 182 cm
