692L H13 - JUST 32.5 CM SEAT HEIGHT ON 13 CM LEGS print

Product code: 692 L H13

Seat Height:

692 L H13 mechanism is designed for modern high leg sofa designs and offers the lowest seat height in the market within one fold 14 cm mattress category*.

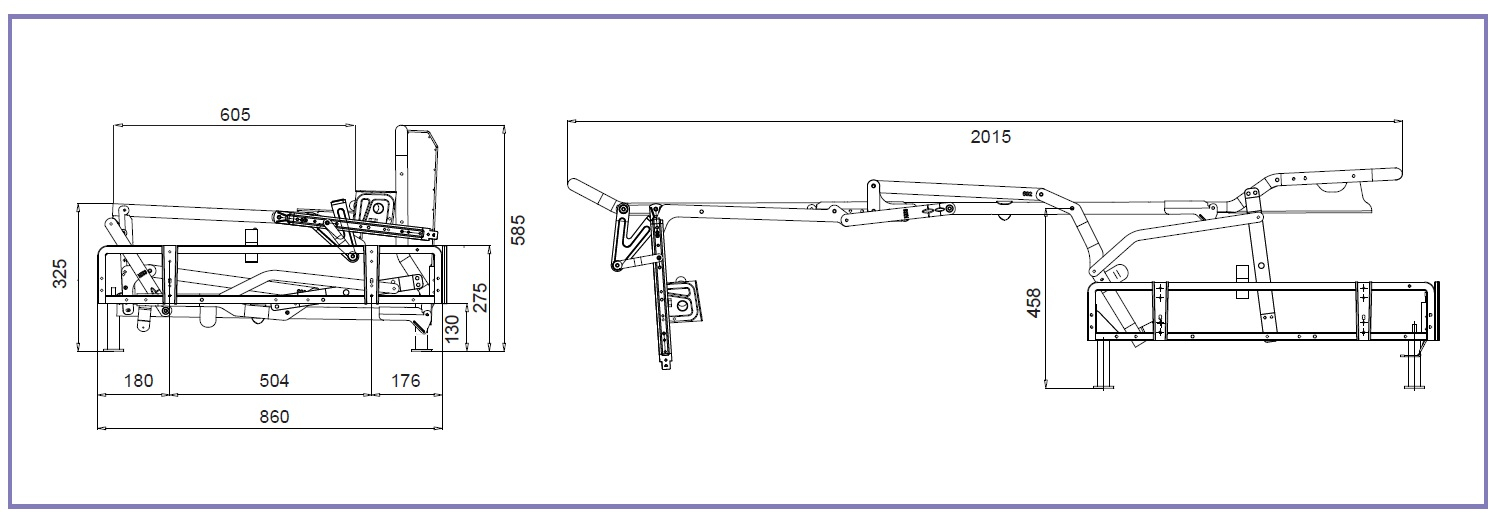

Seat height with 13 cm feet: just 32.5 cm from the floor without the cushions*.

Mattress Size:

Mechanism accommodates 14 cm thick mattress that is 200 cm long and comes in widths of 70, 100, 120, 140 and 160 cm.

Sleeping Deck:

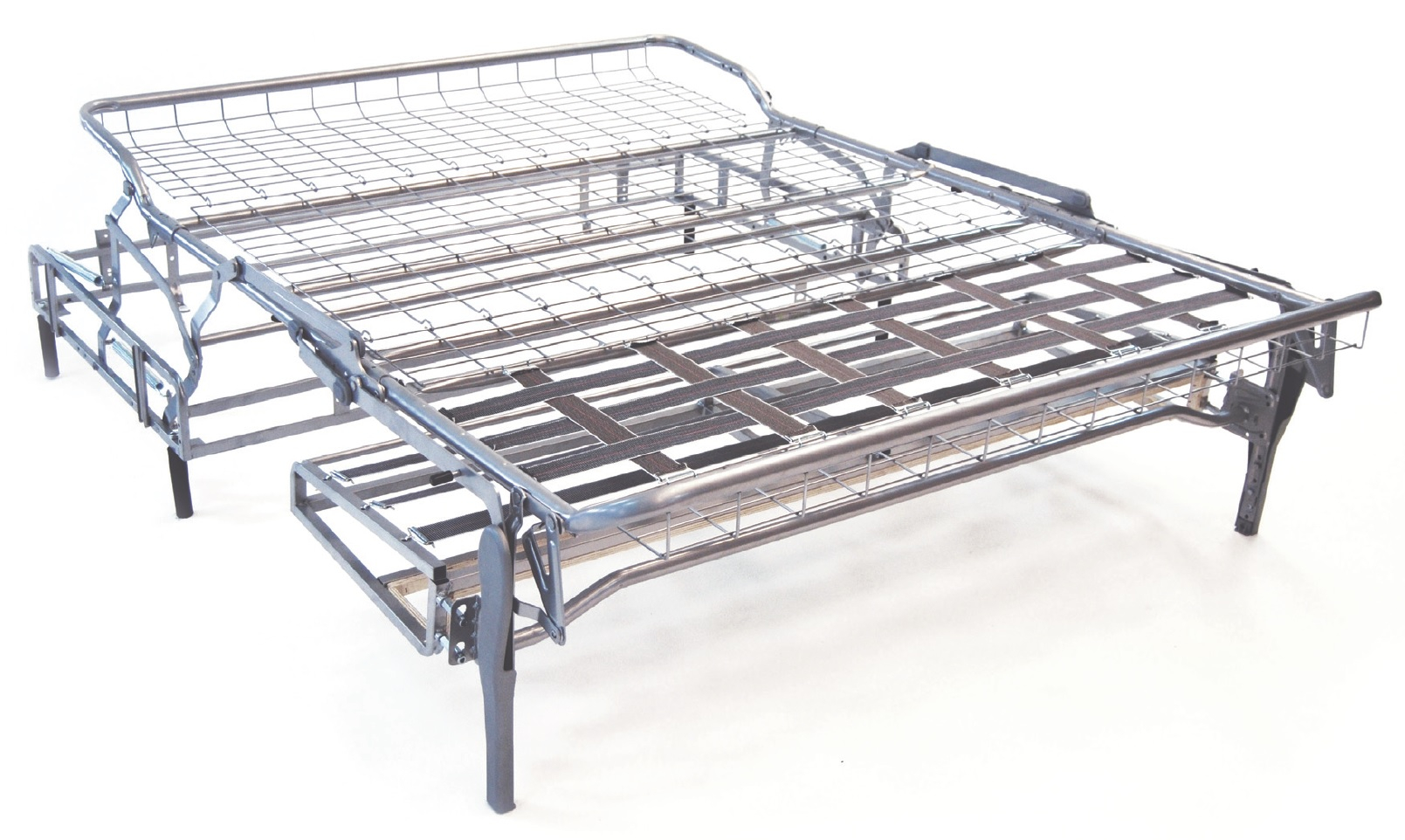

692 L H13 comes standard with electro welded grid and elastic webbing sleep deck.

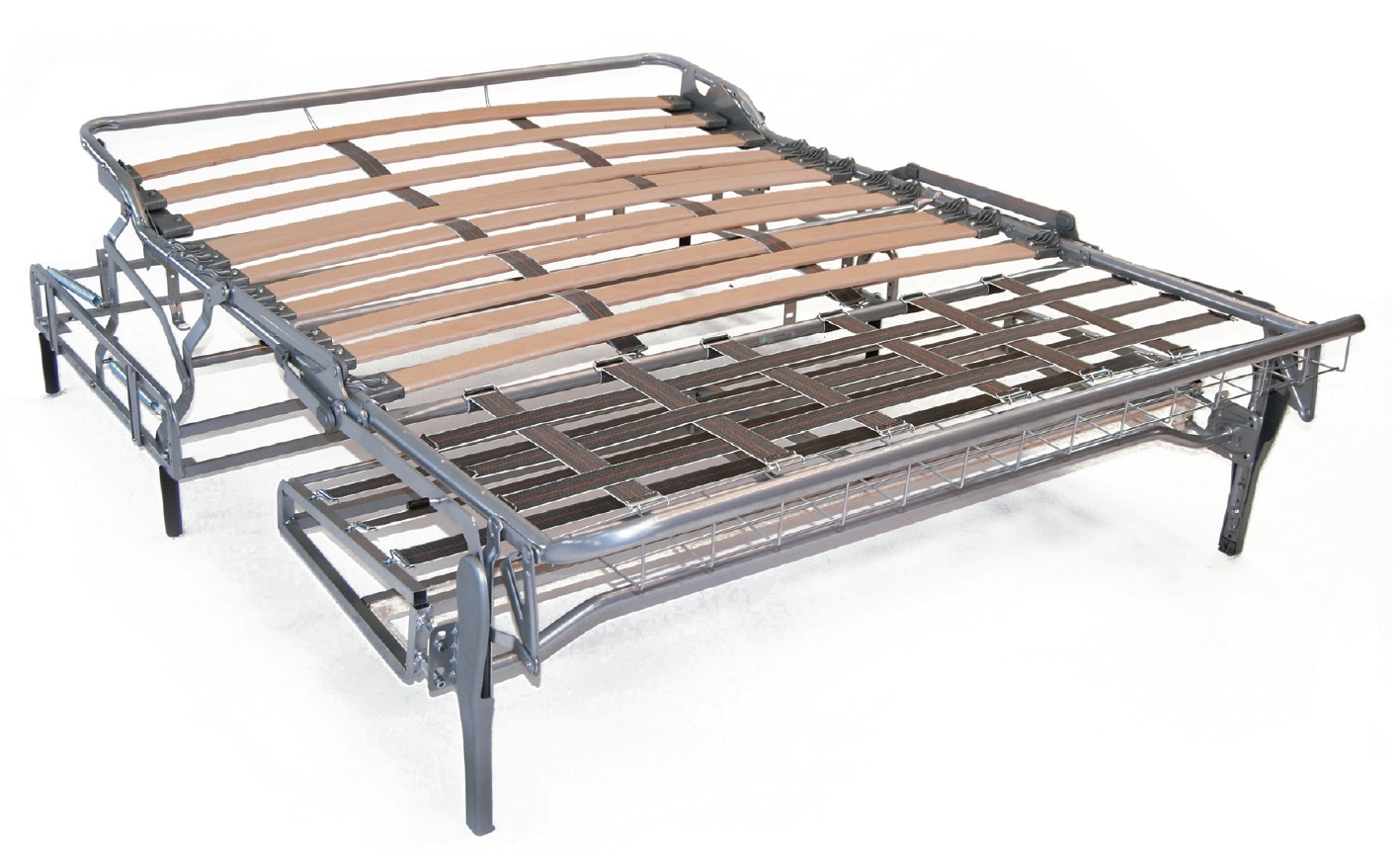

Slats and elastic webbing can be introduced for premium sleep surface.


692 L H13 is an ultra low seat self-standing mechanism with a special bayonet attachment system for an easy knock-down assembly of the upholstered parts onto the mechanism frame.

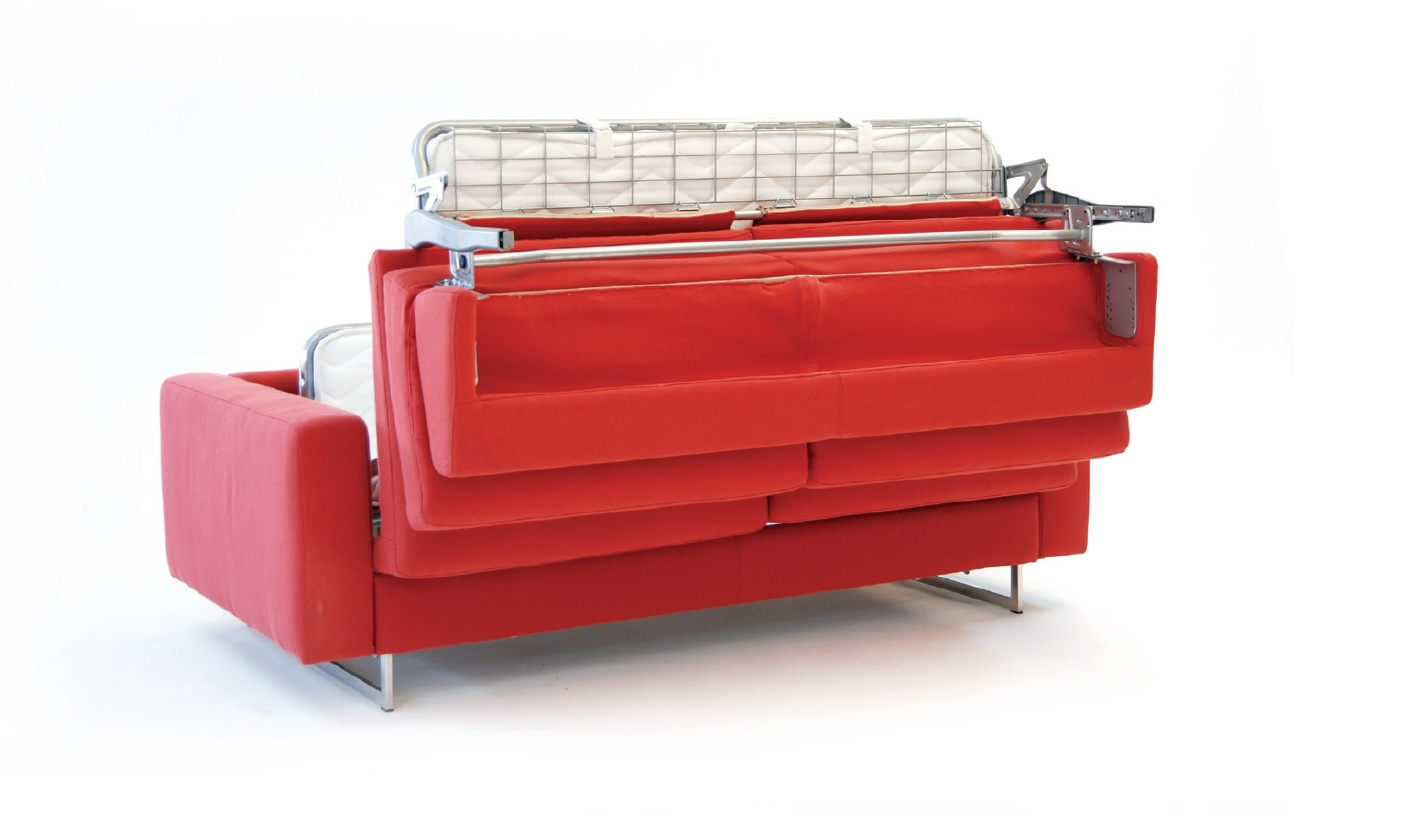

Mechanism opens by pulling the backrest of the sofa towards the operator via smooth one-fold rotating action.

Cushions do not need to be removed when opening and closing the mechanism.
