692 Magnum-17 cm thick mattress for maximum comfort print

Product code: 692 M

Seat Height:

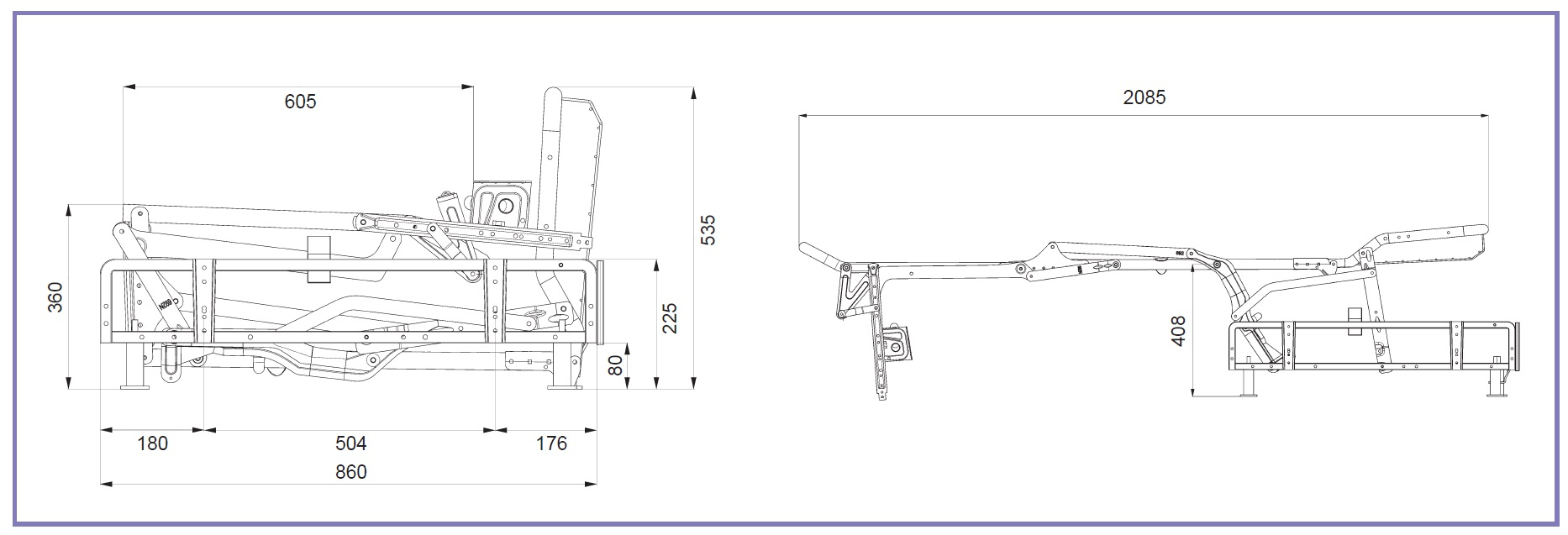

Seat height with 8 cm feet: 36 cm from the floor without the cushions

Mattress Size:

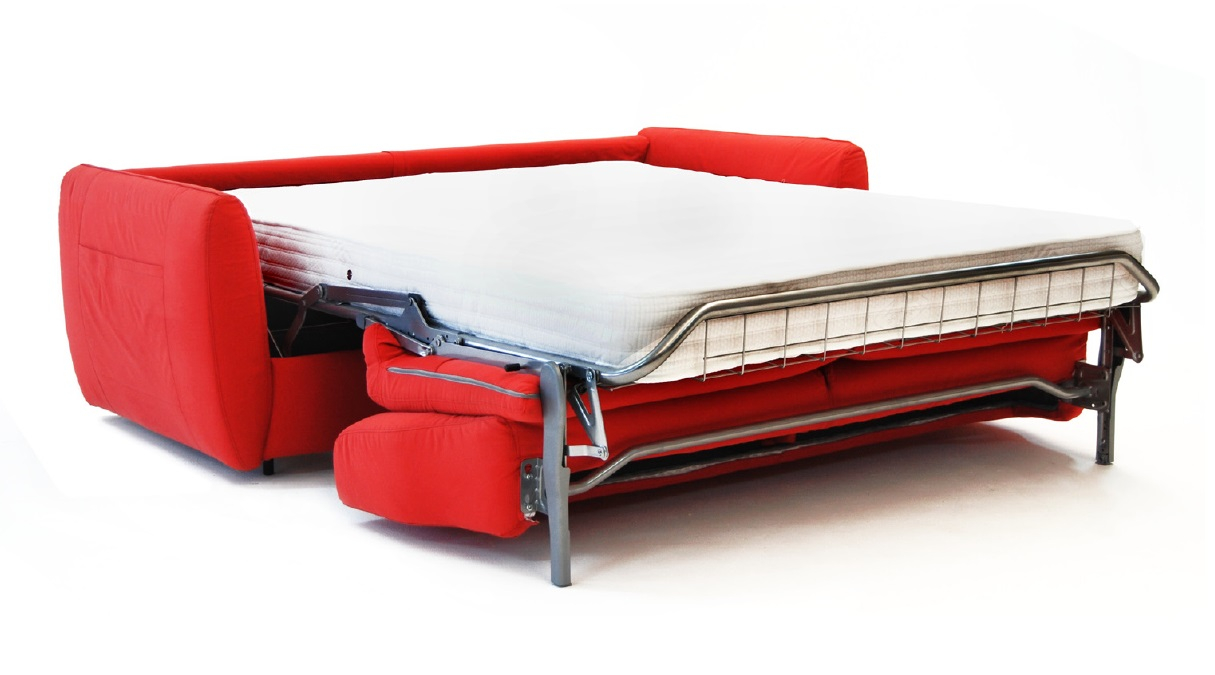

Mechanism accommodates 17 cm thick mattress that is 200 cm long and comes in widths of 70, 100, 120, 140 and 160 cm.

Sleeping Deck:

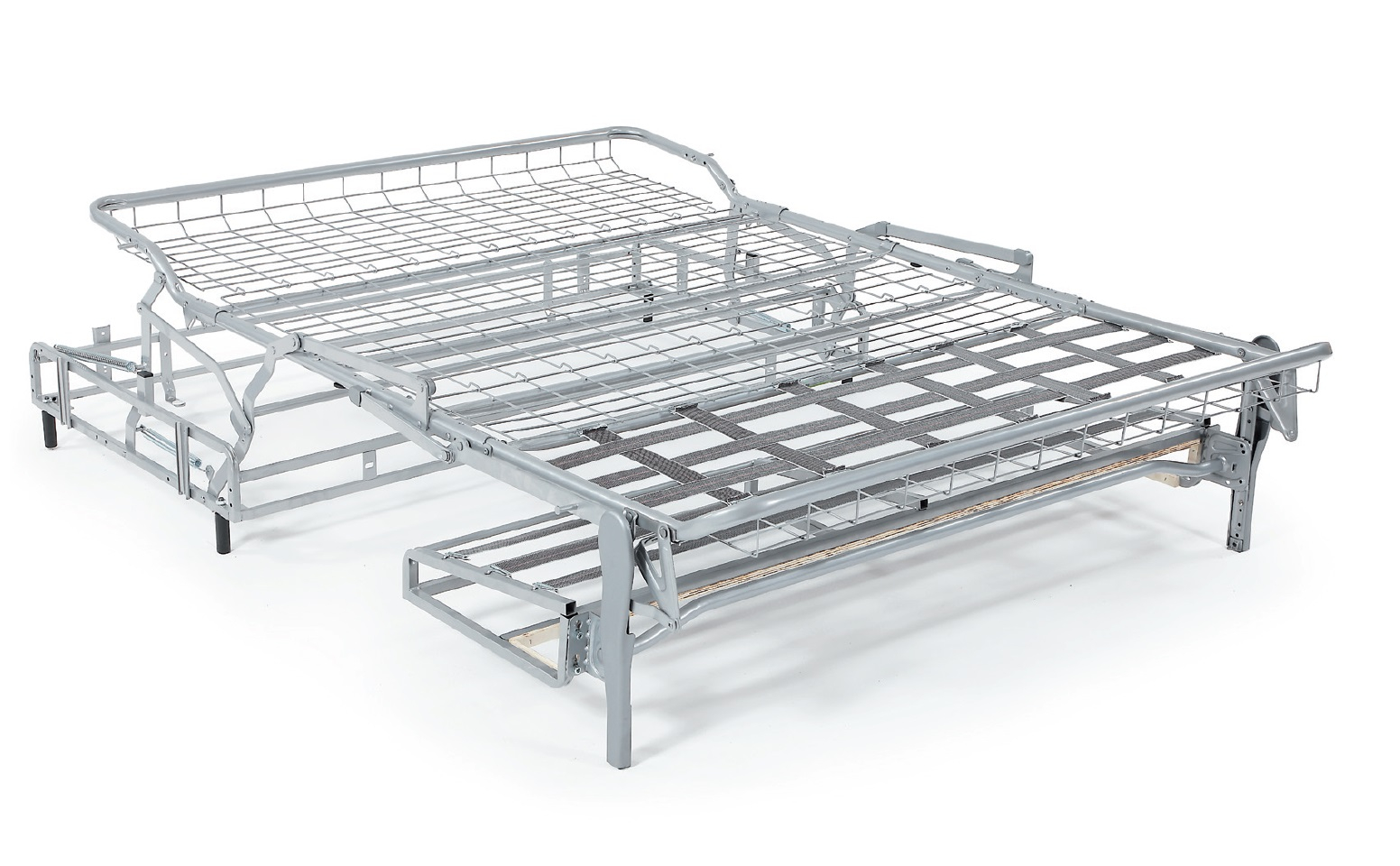

692 Magnum comes standard with electro welded grid and elastic webbing sleep deck.

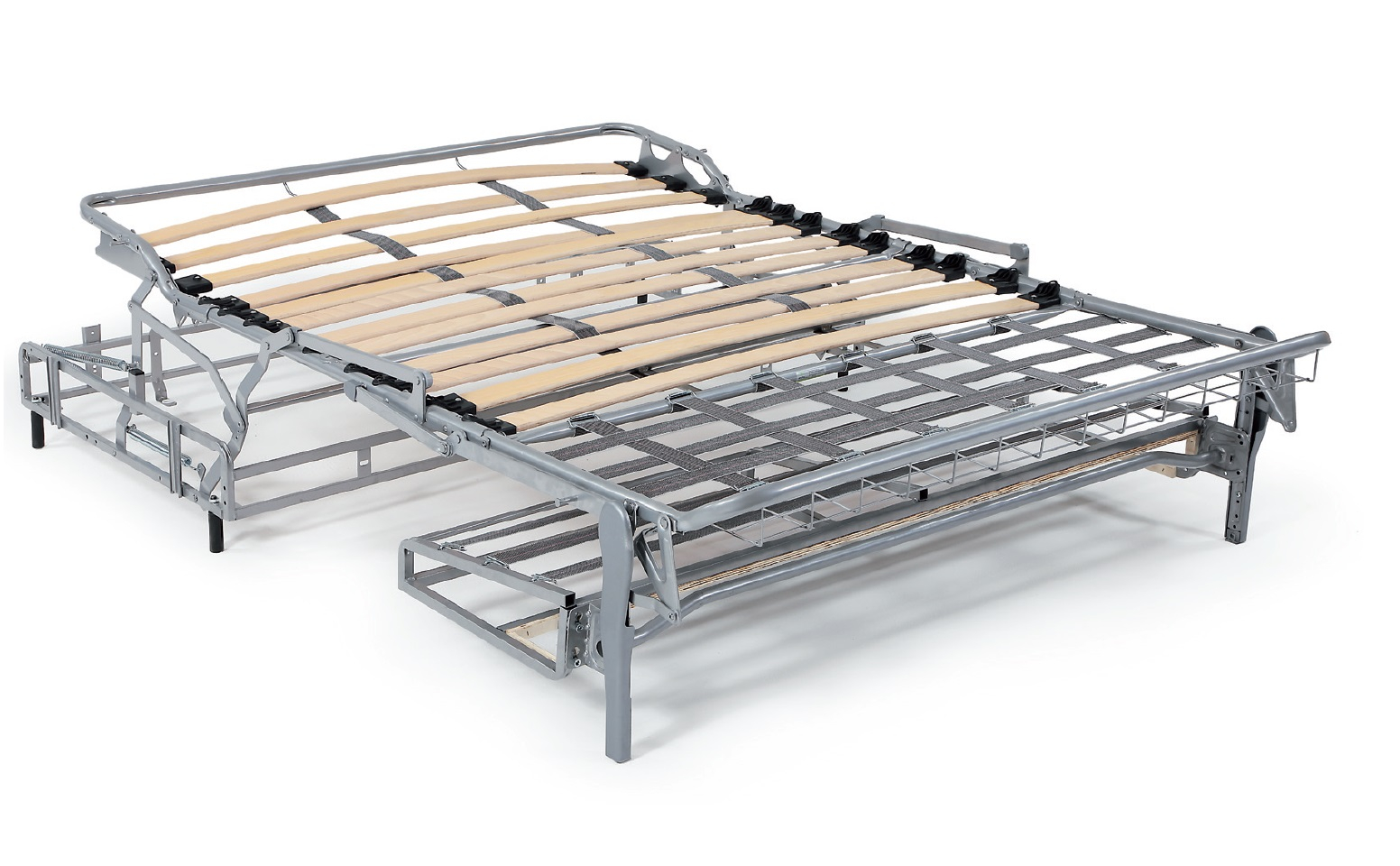

Slats and elastic webbing can be introduced for premium sleep surface.

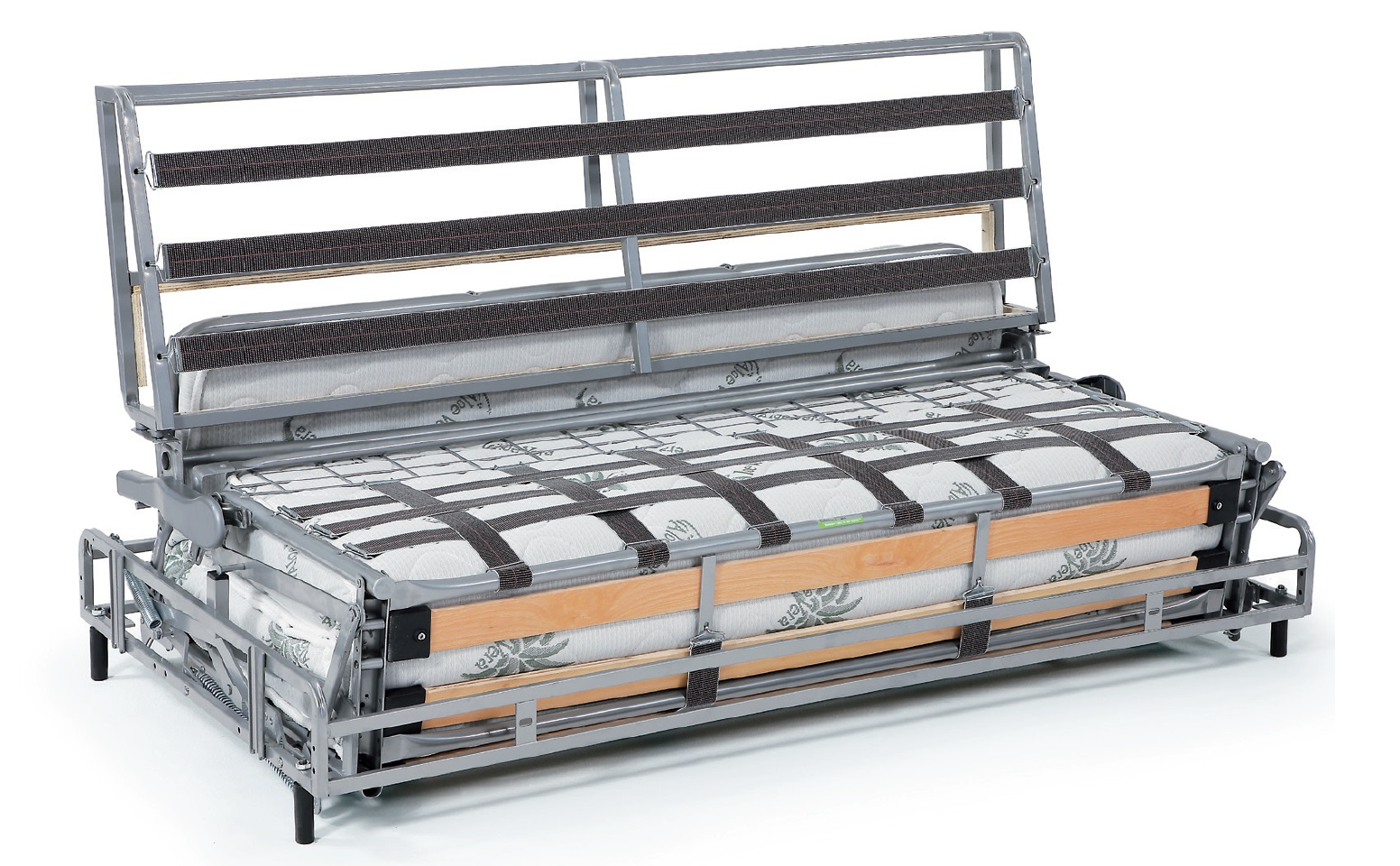

692 Magnum is a deep cavity self-standing mechanism with a special bayonet attachment system for an easy knock-down assembly of the upholstered parts onto the mechanism frame.

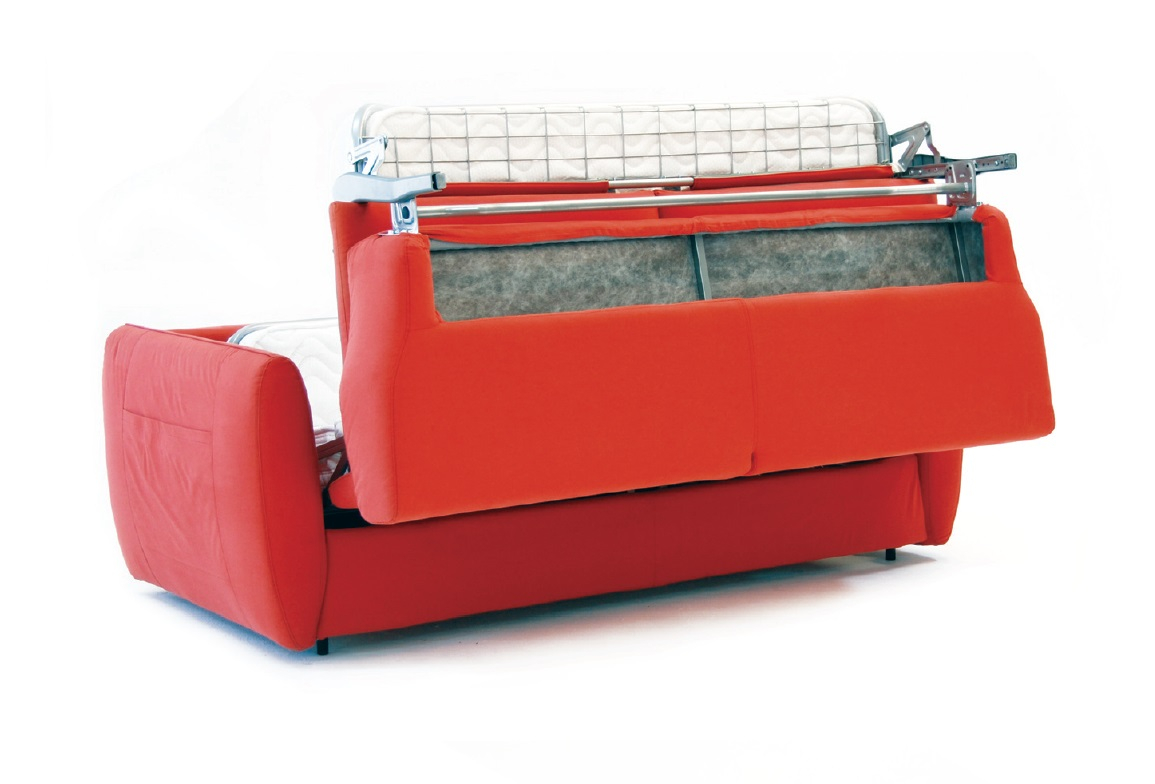

Mechanism opens by pulling the backrest of the sofa towards the operator via smooth one-fold rotating action.

Cushions do not need to be removed when opening and closing the mechanism.
